CNC GLASS CUTTING MACHINE "SHERHAN"
An industrial CNC machine for cutting and breaking sheet glass is a high-tech equipment designed to automate the processes of cutting and breaking sheet glass from 2 to 19 mm in thickness.
Automatic glass cutting table

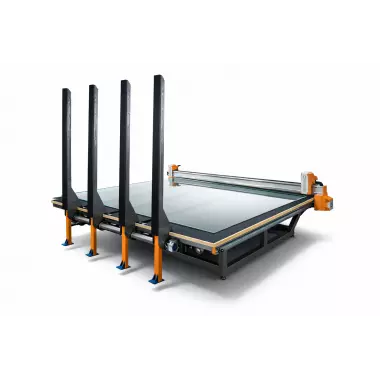

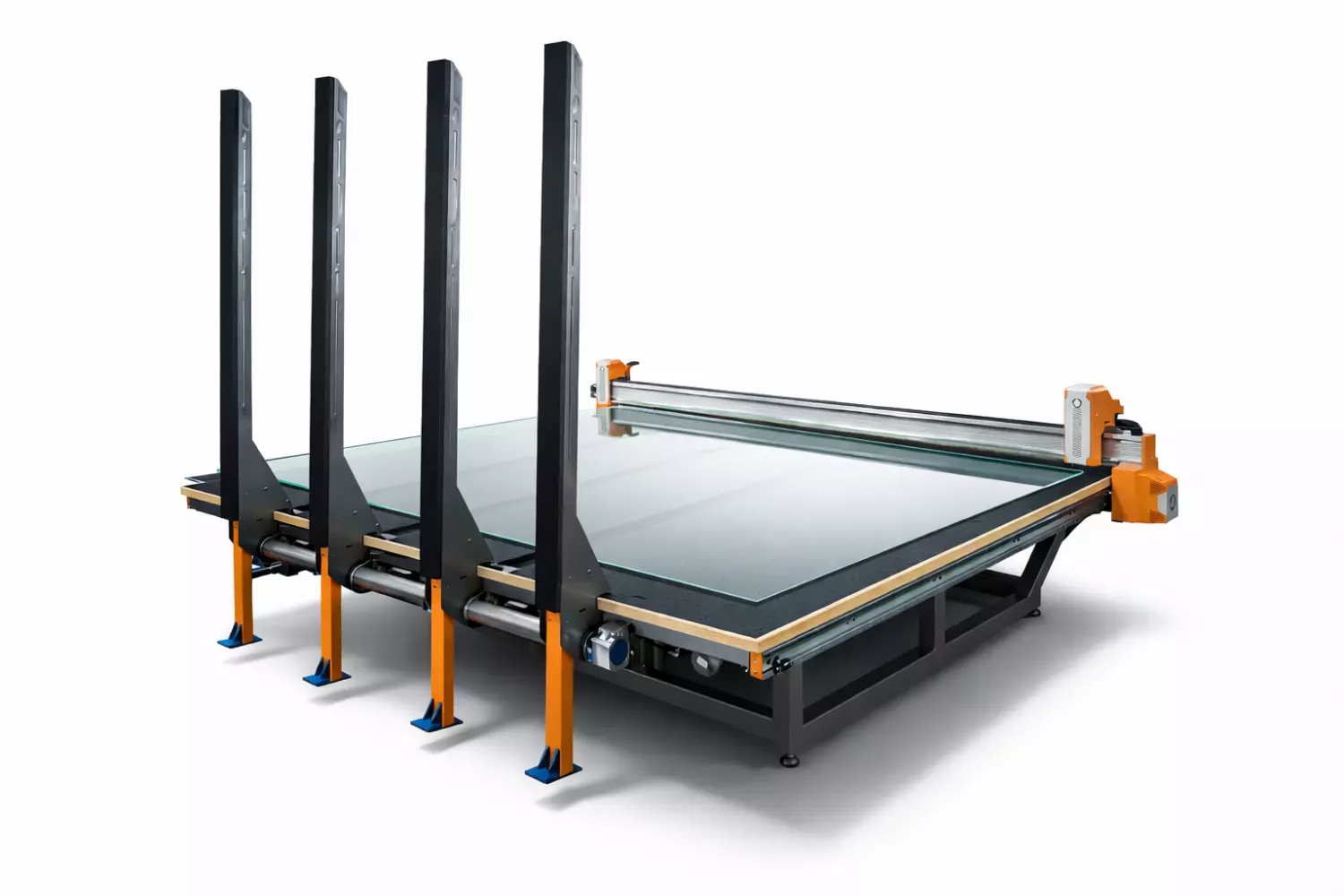

The SHERHAN CM 1828 automatic glass cutting table is a high-tech machine used for linear and curved cutting of sheet glass and mirrors.
The device is equipped with an air cushion and glass position scanning for precise positioning, ensuring high positioning accuracy.
In its operation, the glass and mirror cutting table demonstrates high stability thanks to its metal welded construction.
Furthermore, the use of MITSUBISHI servo motors further enhances the accuracy of the machine.
The working area of the table is 1800x2800 mm, allowing for efficient cutting of various sizes of sheet glass and mirrors.
Working area 1800x2800 mm
MITSUBISHI SERVOMOTORS
OPTIMIZATION SYSTEM
UP TO 100 M/MIN PRODUCTION SPEED
CUTTING ACCURACY 0.15 MM
ADVANTAGES OF CNC SHERHAN GLASS CUTTER
Tangential rotation axis
Increases productivity and reduces glass and mirror waste during cutting
Automatic pressure regulation
Automatic adjustment of pressure / liquid supply to the cutting roller, depending on the speed of the path, as well as on the requirement for straight and curved glass cutting
High-precision mechanics
The bed is made of a welded steel frame. All parts for the machine are made on CNC machines, which allows you to create mechanics with a cutting accuracy of up to 0.15 mm at a speed of 90 m / min on a 1700x2800 mm working table and up to 180 m / min on a 2600x3300 mm table.
Optimization system
Allows to simplify as much as possible the creation of a cutting chart for straight-line glass cutting
Air cushion
The machine comes with a powerful fan for air supply. It allows to evenly distribute air over the working area and forms an air cushion to reduce the friction force when the glass comes into contact with the working area.
Retractable stops
Pneumatically actuated stops allow precise positioning of the glass to the machine zero point without resorting to an expensive material scanning system
Glass breaking system
Activated by pedals. Located one on the long side of the machine, it makes easier the breaking of glass with a thickness of more than 8 mm.
Extended Warranty
We provide a 2-year warranty for the mechanical and electrical parts of the machine.
MACHINE TECHNICAL CHARACTERISTICS
| Technical specifications | SHERHAN CM 1828 | SHERHAN CM 2633 |
|---|---|---|
| Working area | 1800х2800 mm | 2600x3300 mm |
| Operating speed | 90 m/min | 180 m/min |
| Minimal glass width | 2 mm | 2 mm |
| Maximum lass width | 19 mm | 19 mm |
| Axis drive | Mitsubishi servomotor | Mitsubishi servomotor |
| Positional accuracy | 0,15 mm | 0,15 mm |
| Follow-up accuracy | 0,15 mm | 0,15 mm |
| Pivoted head with pneumatic drive | Option | - |
| Tangential rotation axis | Option | Yes |
| Table surface material | Felt material | Felt material |
| Automatic liquid feeding on glass, depending on the speed of the path | available | available |
| Air-cushion | available | available |
| Retractable stops | available | available |
| Breaking glass system | option | option |
| X axis drive | Rack and pinion Apex | Rack and pinion Apex |
| Y axis drive | Belt-drive Elatech | Rack and pinion Apex |
| Z axis drive | Pneumatic Camozzi | MITSUBISHI servomotor |
| Power supply | 380 3Ph 50-60hz | 380 3Ph 50-60hz |
| Air-feeding | 6-8 atm | 6-8 atm |
| Wattage, watts | 4600 W | 6000 W |
| Control software | SkyglassProfi | SkyglassProfi |
| Surface overall machine dimension | 2250х3300х1300 mm | 2250х3300х1300 mm |
| Packing dimensions of machines | 2300х3500х1300 mm | 2300х3500х1300 mm |
| Net weight | 800 kg | 1800 kg |
| Total weight | 900 kg | 1900 kg |
This high-tech equipment stands out for its maximum cutting productivity and precision.
The working area of the Sherhan glass cutting machine is 2600x3300mm, allowing for the processing of large glass sheets with dimensions of 2250x3210mm and 2550x3210mm.
With a cutting speed of up to 180 meters per minute, this machine demonstrates high speed and efficiency, making it an optimal solution for companies that require quick and precise processing of large volumes of glass.
The Sherhan glass cutting machine can handle glass thicknesses ranging from 3 to 19mm, providing a wide range of possibilities for working with various types of glass.
The cutting accuracy is 0.15mm, enabling the production of high-quality and precise glass blanks.
One important feature of the machine is the presence of an air cushion for easy glass movement, which is convenient and reduces the operator's workload when transferring glass sheets to the machine.
Additionally, the machine is equipped with an integrated glass loading system and a breaking system for both the long and short sides, simplifying the glass-breaking process and increasing productivity.
An optical scanner for determining the position of the glass on the machine's working field ensures precise positioning and reliable cutting.
Optional features include a low-e coating removal system for energy-saving glass and a printer for label printing.
The machine is equipped with pattern scanning capabilities and a library of pre-existing patterns, making it versatile and allowing for the swift and high-quality execution of customer orders.
The optimization program reduces setup time and increases machine productivity, ensuring efficient material utilization and reducing waste during glass processing.
The Sherhan glass cutting and breaking machine with a loading system is a reliable, functional, and efficient piece of equipment that guarantees maximum cutting precision and quality. With this machine, even the most complex orders can be processed, delivering excellent results for all types of glass.
Sherhan is an excellent choice for companies that require precise and automated glass cutting processes on an industrial scale.
