One or two tools on the carriage
The carriage accepts one or two tangential tools. Two operations can run in one job without manual tool changes.
Tool selection depends on the material: through-cutting, kiss-cutting, creasing or marking.

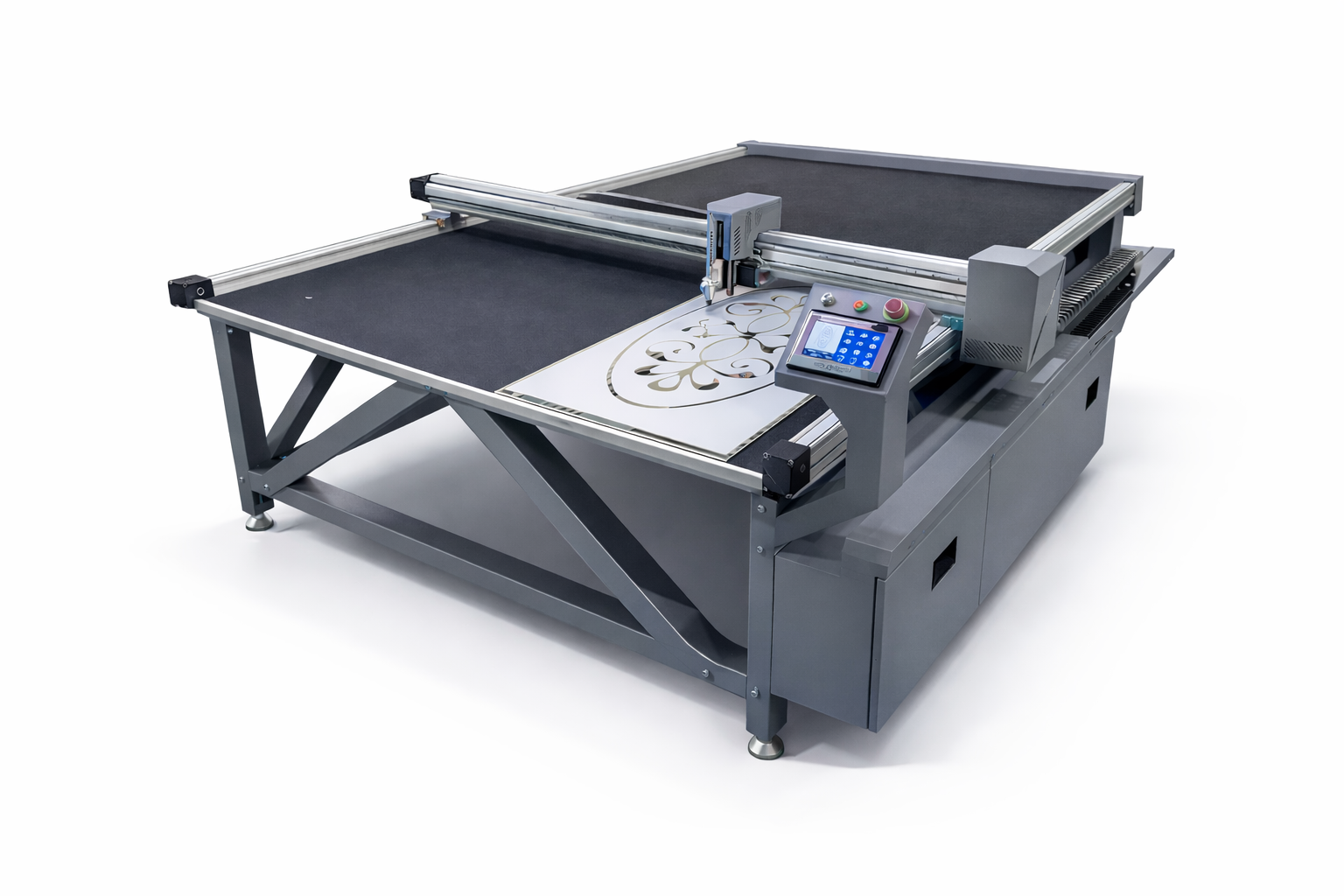

Stationary flatbed cutting plotter · lightweight configuration
PROFICUT RR
A lightweight stationary cutting plotter for production sites that require accuracy and repeatability without a conveyor or an extra-long table. Its modular frame simplifies delivery, access and installation in workshops with restricted doorways while maintaining rigidity across the working area.
Made to order
Production time: 30–60 days. Warranty: 2 years. Price is calculated according to the working area and configuration.
Free test cutting of your material at our production facility
Modular frame
easy to deliver and install in an existing workshop
Working rigidity
accuracy is maintained across the cutting area
Stationary cutting plotter with a modular frame
PROFICUT RR FOR PRECISE CUTTING OF SHEET MATERIALS
PROFICUT RR is a stationary flatbed cutting plotter manufactured by SKY TECH. Its modular frame simplifies delivery and installation in workshops with restricted access. Available working areas are 1400×1200 and 1400×2300 mm, with one or two tangential tools and travel speed up to 30 m/min. We select the configuration after testing the material and confirming the required operations.
Modular frame for installation in an existing workshop
The machine can be delivered in sections and assembled on site. This suits facilities with narrow doorways or limited access to the production area.
After assembly, the working area retains its specified geometry.
Consistent cutting of series-produced parts
The aluminium table and adjustable hold-down keep the sheet in the working area. Cutting parameters are saved for the material, tool and edge-quality requirements.
This reduces displacement, rejects and manual trimming.
Up to two tools on the carriage
The plotter can be equipped with one or two tangential tools for through-cutting, kiss-cutting, creasing or marking. The available operations depend on the selected configuration.
Travel speed is up to 30 m/min.
MITSUBISHI SERVO MOTORS
SIMPLE AND EASY-TO-USE CONTROL
UP TO 30 M/MIN PRODUCTION SPEED
SPLIT BODY DESIGN
Key components and specifications of PROFICUT RR
Stationary flatbed plotter for serial contour cutting of sheet materials. The configuration is selected after material testing and review of finished-part requirements. Working areas: 1400×1200 and 1400×2300 mm; up to two tools; travel speed up to 30 m/min.
Travel speed up to 30 m/min
Actual cutting speed depends on the material, thickness, tool and contour geometry.
We set the operating mode after a trial cut of the customer’s sample.
Mitsubishi servo motors on X and Y
Servo motors control carriage movement on both axes for smooth travel along straight lines and complex contours.
Drive parameters are adjusted for the installed tool and operating mode.
Industrial controller
The operator starts jobs and monitors the main parameters through the controller.
Settings can be saved for repeat production of identical parts.
Cutting accuracy 0.2 mm
The specified accuracy applies across the full table length on properly prepared and calibrated equipment.
The result depends on the material, tool, mode and finished-part requirements.
2-year warranty
The warranty covers the mechanical and electrical parts of the equipment.
Warranty terms and supplied configuration are specified in the contract.
Commissioning and training
Before handover, we configure the main operating modes and train the operators. After delivery, we perform commissioning and personnel training.
PROFICUT RR flatbed cutting plotter configuration
We select the working area and tools after testing the material and reviewing the customer’s files.
Working area
Input: sheet size and part dimensions.
PROFICUT RR: 1400×1200 or 1400×2300 mm.
The sheet fits in the working area without intermediate repositioning.
Tools
Input: material and required operations.
Up to two tangential tools on the carriage for cutting, kiss-cutting, creasing or marking.
Two operations can run in one job without manual tool changes.
Productivity
Input: material, contour length and batch size.
Travel speed up to 30 m/min; cutting mode depends on the material and tool.
Stable serial cutting while maintaining the required edge quality.
Drive system
Input: part contour and travel mode.
Mitsubishi servo motors control the X and Y axes.
Smooth movement on straight sections and complex contours.
Accuracy
Input: finished-part tolerances.
Cutting accuracy 0.2 mm across the full table length.
Repeatable part dimensions in serial jobs.
Control and warranty
Input: control and commissioning requirements.
Industrial controller and a 2-year warranty for mechanical and electrical parts.
The operator receives configured equipment and practical training.
ADVANTAGES OF THE PROFICUT CNC CONTOUR CUTTER
Micrometric blade extension and floating head
Maximizes tool life and cut quality
Up to 30 m/min production speed
Mitsubishi Servo Motors
Creates a soft stroke of the machine and comfortable movement along the XY axes
Convenient management
The machine is controlled through the controller, which creates a convenient and comfortable work
Precise vinyl cutting
Cutting accuracy 0.2 mm. full length of the table
Extended Warranty
We provide a 2-year warranty for the mechanical and electrical parts of the machine
---
CUTTING CARPET ON A PROFICUT FLATBED CUTTING PLOTTER
CUTTING CORRUGATED CARDBOARD ON A PROFICUT FLATBED CUTTING PLOTTER
CUTTING FABRIC ON A PROFICUT FLATBED CUTTING PLOTTER
CUTTING THICK RUBBER ON THE PROFICUT FLATBED CUTTING PLOTTER
CUTTING OF TECHNICAL FABRIC ON A PROFICUT FLATBED CUTTING PLOTTER
CUTTING OF HONEYCOMB CARDBOARD ON A PROFICUT FLATBED CUTTING PLOTTER
CUTTING OF LEATHER. CUTTING ON PROFICUT FLATBED CUTTING PLOTTER
CUTTING VENEER ON PROFICUT FLATBED CUTTING PLOTTER
CUTTING TARPAULIN FABRIC ON A PROFICUT FLATBED CUTTING PLOTTER
CUTTING REINFORCED RUBBER ON A PROFICUT FLATBED CUTTING PLOTTER
CUTTING EVA MATERIAL ON THE PROFICUT FLATBED CUTTING PLOTTER
PVC FILM CUTTING ON PROFICUT FLATBED CUTTING PLOTTER
MILLING OF PLEXIGLASS 10 MM. V-SHAPED MILLING CUTTER ON A FLATBED CUTTING PLOTTER
Request a quotation
We will prepare a quotation for your product and production volume
To determine the configuration, price and delivery time, we need to know the material, product dimensions, required result and planned production load. If some details are not yet available, send us what you already know.
01
We receive your requirements
Product, material, dimensions, production volume and a sample of the required result.
02
We clarify the parameters
We clarify the process, quality requirements, operating conditions and commissioning.
03
We prepare the quotation
It includes the equipment configuration, price, lead time and delivery terms.
