ProfiCut SRST — решение для раскроя неметаллических материалов
ProfiCut — это промышленная платформа для автоматизации раскроя листовых и рулонных материалов с высокой точностью, стабильной повторяемостью и максимальной производительностью. Резка, надсечка, биговка и фрезеровка в одной системе для серийного производства.

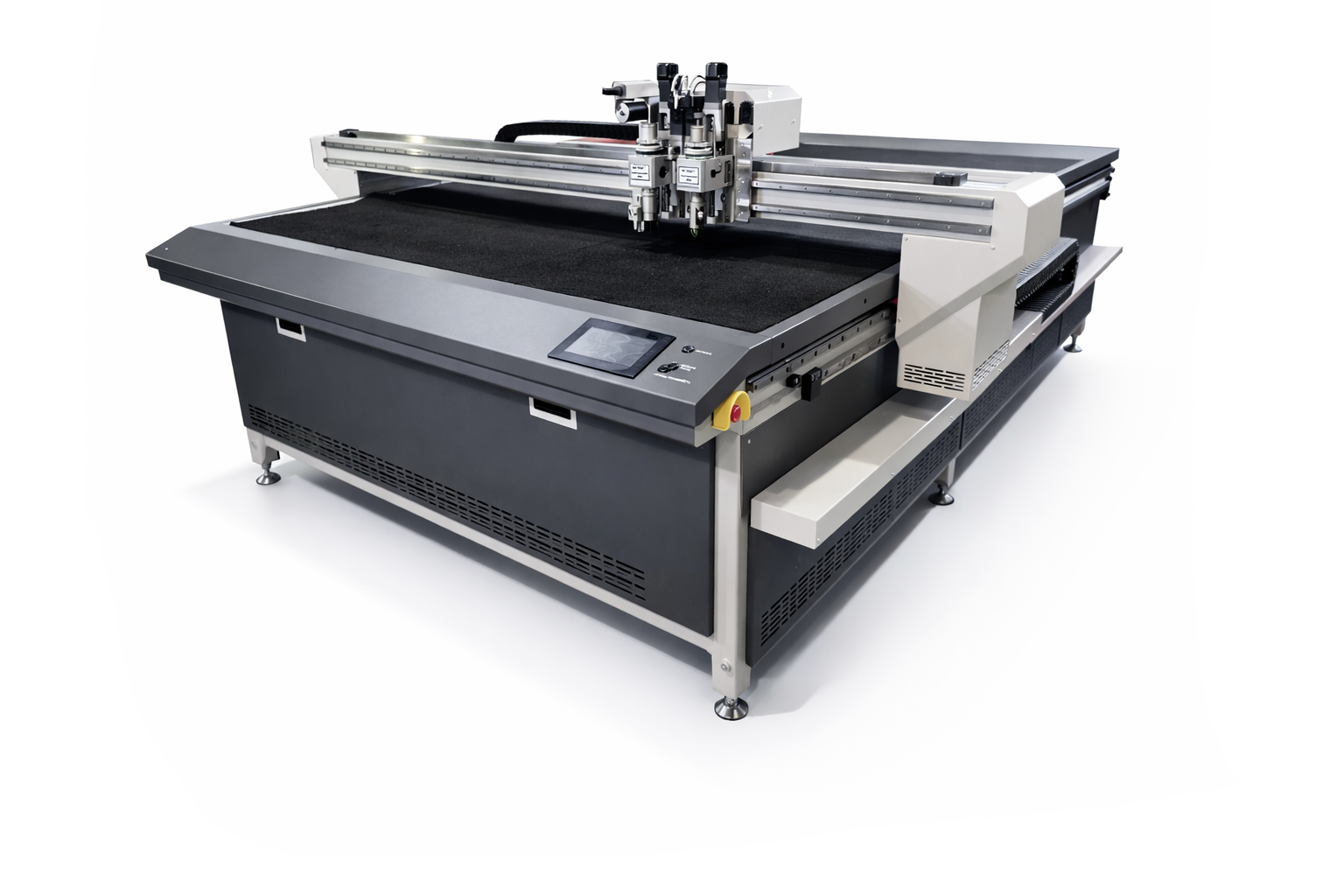

PROFICUT SRST
✓ All-welded frame provides quality cutting at high speeds
✓ 1 to 3 tangential tools on the carriage
✓ Огромное количество доступных модулей и инструментов
✓ Huge number of available modules and tools
✓ High-precision aluminum table
✓ Powerful material clamping system with power adjustment in the cutting zone
✓ Suitable for cutting sheet materials
ADVANTAGES OF PROFICUT CUTTING MACHINES
PRECISION MECHANICS
The portal movement is achieved through two independent Mitsubishi servo motors, synchronized by the machine's control electronics. The movements along the axes are facilitated by a helical gear transmission mechanism
MOUNTING 1 TO 3 TOOLS ON CARRIAGES
The functional feature of the equipment allows for the installation of up to 3 tools on the carriage
INTEGRATED ROLL-FEED SYSTEM
For precise feeding of roll material onto the conveyor table
INTELLIGENT CONVEYOR TABLE
To ensure continuous material feeding to the working area of the machine, which reduces downtime by 2 times, minimizes costs, and increases productivity by 80%
VACUUM TABLE WITH A ZONED CLAMPING DEVICE
The aluminum vacuum table with the "smart" zoning function allows for material clamping with adjustable vacuum levels according to the type and nature of the material
OPTICAL SCANNING SYSTEM (CAMERA)
For precise material positioning during cutting based on a printed image
INTEGRATION WITH VECTOR PROGRAMS
The preparation of cutting layouts can be done in any vector editing software that supports export in PLT, DXF, or G-code format
OPTIMIZATION WITH SKY TECH UV PRINTER
Integration with SKY TECH UV printers for optimizing printing and cutting of images on popular materials
AVAILABLE TOOLS FOR PROFICUT
 | PNEUMATIC OSCILLATING TOOL (PNOT)
| |
 | ELECTRIC OSCILLATING TOOL 600 WATT. (ELOT)
The ELOT is the perfect choice for precise and fast cutting of materials up to 30mm thick. With its oscillating blade motion, the ELOT ensures high precision and cutting speed, eliminating material jamming between the blade and the cutting surface. Lightweight and easy to use, the ELOT is an ideal tool for those seeking a simple and efficient way to cut materials. With a wide selection of blades available, it is easy to find the optimal knife for each material, including paper, PVC film, leather, rubber, and corrugated cardboard. | |
 | KISS CUT TOOL
The Kiss Cut tool is a versatile solution for fast and high-quality cutting of various materials such as PVC film, reflective materials, paper, thin cardboard, magnetic vinyl, and other roll materials. With this tool, it is easy to create precise kiss cuts, which allow for easy separation of cut parts from the backing material. Kiss Cut is a reliable assistant for the production of various products from roll materials. | |
 | ROTARY CUTTING TOOL (RTCT)
RTCT is a cutting tool designed for efficient cutting of various types of textiles and PVC fabrics. It is also suitable for processing materials such as Kevlar, fiberglass, and carbon fiber. Our technology ensures precision and quality cutting, allowing for reduced production costs and increased productivity. We guarantee the reliability and durability of our tool, making it an ideal choice for any material cutting task. | |
 | CUTTING TOOL FOR CUTTING ANGLES 0°,15°,22.5°, 30°,45° (VCUT)
The VCUT cutting tool is designed for cutting at angles of 0°, 15°, 22.5°, 30°, and 45°. It is ideal for cutting complex structural forms such as rigid sandwich panels and foamed composite materials. With VCUT, you will be able to quickly and easily create high-quality and precise cuts, significantly speeding up the production process and enhancing its efficiency. | |
 | MARKING TOOL
It is the perfect solution for those looking for a way to apply graphic information or labeling onto their products. | |
 | MODULE.HOLE PUNCH (POT)
The modular puncher, POT, is an efficient solution for creating holes with diameters ranging from 1 to 6 mm. It is perfect for punching perforations in fabric and leather products. With POT, you can easily and quickly create holes of the desired diameter without damaging the material. This tool will definitely be useful when working with textile and leather goods. | |
 | CREASING TOOL WITH 3 WHEEL DIAMETERS (BTD)
The BTD tool features three wheel diameters and is used for creating linear grooves on soft materials such as cardboard. It is perfect for creating grooves that can be easily folded afterwards. This tool consists of an attachment with a movable roller, ensuring more precise and even application of the line. BTD is a reliable and efficient solution for anyone working with soft materials and seeking a quick and easy way to create grooves. | |
 | UNIVERSAL TANGENTIAL CUTTING TOOL (UTCT)
UTCT is a universal tangential cutting tool that provides an optimal solution for cutting materials up to a thickness of 5mm. This tool is ideal for cutting films, cardboard, and thin plastics. Due to its versatility, UTCT can be used in various industries such as packaging manufacturing, advertising and design studios, and other areas where precise and high-quality material cutting is required. UTCT is a reliable and high-quality tool that will help you tackle any material cutting task with ease. | |
 | MILLING UNIT. MILLING TOOL (FRT)
The milling module with the Milling Tool (FRT) is an innovative solution for processing rigid materials such as acrylic, composite, and ABS plastic. The spindle provides a speed of up to 24,000 revolutions per minute, allowing for cutting materials up to 20mm thick. We offer two models of FRT: with power of 0.8 kW and 1.8 kW. These models ensure high precision and productivity when processing materials. The milling module with the Milling Tool (FRT) is a reliable and efficient solution for your production needs. It is perfect for processing various materials and can be used in different industries such as furniture manufacturing, advertising, and interior design. |
---
CUTTING CARPET ON A PROFICUT FLATBED CUTTING PLOTTER
CUTTING CORRUGATED CARDBOARD ON A PROFICUT FLATBED CUTTING PLOTTER
CUTTING FABRIC ON A PROFICUT FLATBED CUTTING PLOTTER
CUTTING THICK RUBBER ON THE PROFICUT FLATBED CUTTING PLOTTER
CUTTING OF TECHNICAL FABRIC ON A PROFICUT FLATBED CUTTING PLOTTER
CUTTING OF HONEYCOMB CARDBOARD ON A PROFICUT FLATBED CUTTING PLOTTER
CUTTING OF LEATHER. CUTTING ON PROFICUT FLATBED CUTTING PLOTTER
CUTTING VENEER ON PROFICUT FLATBED CUTTING PLOTTER
CUTTING TARPAULIN FABRIC ON A PROFICUT FLATBED CUTTING PLOTTER
CUTTING REINFORCED RUBBER ON A PROFICUT FLATBED CUTTING PLOTTER
CUTTING EVA MATERIAL ON THE PROFICUT FLATBED CUTTING PLOTTER
PVC FILM CUTTING ON PROFICUT FLATBED CUTTING PLOTTER
MILLING OF PLEXIGLASS 10 MM. V-SHAPED MILLING CUTTER ON A FLATBED CUTTING PLOTTER
Request a quotation
We will prepare a quotation for your product and production volume
To determine the configuration, price and delivery time, we need to know the material, product dimensions, required result and planned production load. If some details are not yet available, send us what you already know.
We receive your requirements
Product, material, dimensions, production volume and a sample of the required result.
We clarify the parameters
We clarify the process, quality requirements, operating conditions and commissioning.
We prepare the quotation
It includes the equipment configuration, price, lead time and delivery terms.
Working areas and configuration
Standard working areas are 1600×1600, 1600×2000 and 1600×2400 mm. Extended and custom sizes are manufactured to the customer’s specification. Up to four tools can be installed, depending on the required operations.
The plotter is used for rubber, paronite, cardboard, felt, technical textiles, plastics, foam and composite materials. The confirmed material thickness is up to 50 mm; the tool, blade and cutting mode are selected after testing the customer’s sample.
We provide a free material test at our production facility. Manufacturing time is 30–60 days. Commissioning, operator training and technical support are available.
